Solid State High Frequency Welder

1.Model Description:

--Pipe welding(H is pipe welding,C means hardening)

0.35---Frequency(0.35MHZ,350KHZ)

---Power 200KW

GP---High Frequency GP, Super-audio frequency GYP

G---Solid state(high frequency MOSFET,super-audio frequency IGBT)

1.The above represents the rated power 200KW, frequency 350KHZ, solid state high frequency equipment for welded pipes.

2.Input power: three-phase four-wire 380V ± 5%, frequency 50Hz ± 1Hz (special order can be customized according to requirements), capacity greater than 240KVA

3. Rated output: power 200 KW, frequency 300 to 400 KHz.

4. Equipment composition:

One Cabinet, One Console, One Water cooling system (optional)

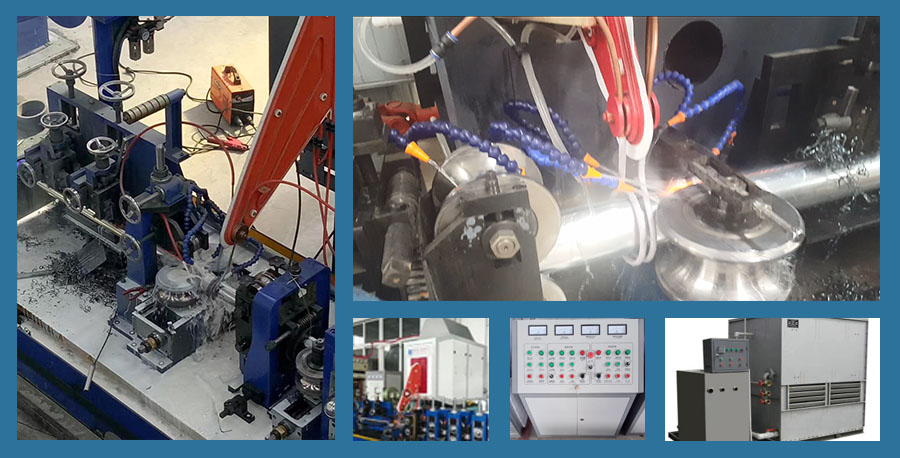

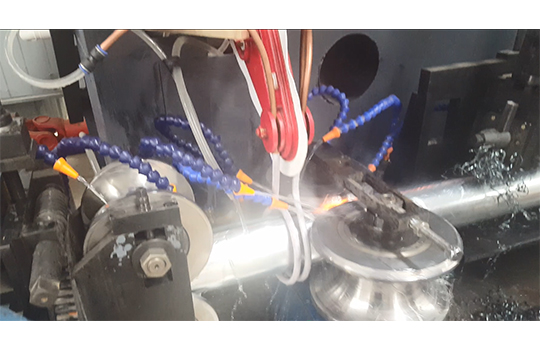

2.Picture for High Frequency Welder:
