High Frequency Tube Mill Construction: A Brief Overview

Aug 07,2023
Page Views: 1186
Author: KingTechTubeMill

The High Frequency Tube Mill is a sophisticated machine that plays a pivotal role in steel pipe manufacturing. Its innovative design and well-structured components ensure optimal performance and efficiency. Let's explore its key parts:

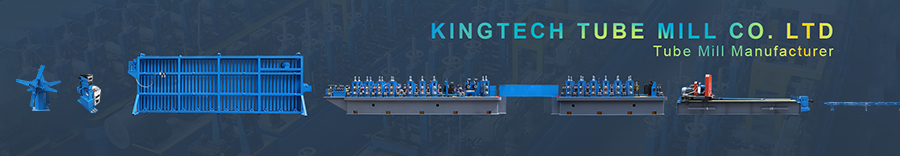

high frequency tube mill

1.Uncoiler:

The process begins with the uncoiler, which unwinds the steel coil, ensuring a continuous feed of raw material.

2.Shear and Butt Welder:

To maintain a continuous production line, the shear and butt welder cuts the trailing edge of one coil and welds it to the leading edge of the next coil. This process ensures uninterrupted feeding of steel and minimal material waste.

3.Accumulator:

The accumulator stores and accumulates the steel strip before it enters the forming section. This part ensures a constant supply of material, preventing any disruptions during coil changeovers.

4.Forming Section

The forming section molds the steel strip into the desired shape of the pipe. It utilizes a series of rolls and stands to gradually shape the material with precision, adhering to the required pipe dimensions.

5.High-Frequency Welding Unit:

The heart of the High Frequency Tube Mill lies in the high-frequency welding unit. This section utilizes induction heating to weld the edges of the steel strip together, creating a seamless and robust weld for the pipe.

6.Sizing Section:

The sizing section fine-tunes the dimensions of the pipe to meet specific requirements. It consists of multiple sets of rolls that carefully adjust the diameter and thickness of the pipe.

7.Turks head:

The Turkshead is responsible for the final shaping and straightening of the pipe. It imparts a smooth and uniform finish, ensuring the pipe meets the desired standards.

8.Flying Cutting Saw:

The flying cut-off saw is a critical component for cutting the finished pipe to the required length accurately. It operates while the pipe is still in motion, providing precise and clean cuts.

9.Run-out Table:

After cutting, the finished pipes move along the run-out table, allowing them to cool down and be collected for further processing or packaging.

10.Control Panel:

The control panel serves as the central nerve system of the High Frequency Tube Mill. It incorporates advanced automation and user-friendly interfaces, enabling operators to monitor and control the entire process efficiently.

In conclusion, the High Frequency Tube Mill's construction comprises several essential components, each with its distinct function in the steel pipe manufacturing process. From unwinding the steel coil to delivering a finished pipe, the well-structured tube mill machine ensures production and outstanding product quality.

Note: The specific design and features of the High Frequency Tube Mill may vary among manufacturers, but the key components mentioned above are common to most high-frequency tube mill designs.
