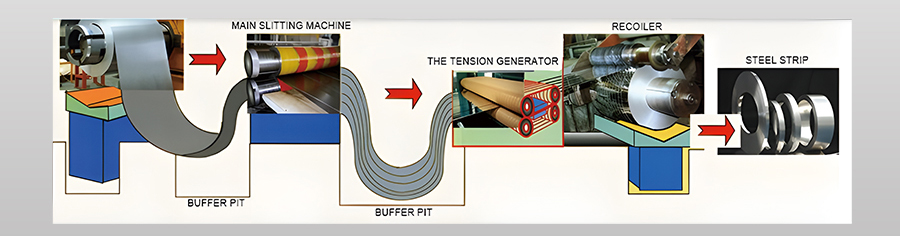

The slitting line is a manufacturing machine used in the metalworking industry to cut wide coils of metal into narrower strips or coils of specific widths. It is commonly used in industries dealing with steel, stainless steel, aluminum, copper, and other metals.The primary function of a slitting line is to take a large coil of material and process it into smaller coils or strips with precise widths, meeting the required dimensional tolerances. The process involves several steps:

1.Uncoiling:

The slitting line starts by uncoiling a large metal coil or roll, which serves as the primary material source. The coil is loaded onto an uncoiler, and the material is fed into the slitting line.

2.Straightening and Cleaning:

Some slitting lines include straightening and cleaning processes to ensure that the material is flat and free from any surface imperfections or debris before it enters the slitting machine.

3.Slitting:

The main slitting machine consists of rotating circular blades or knives that cut the wide coil into multiple narrower strips of the desired widths. These blades can be adjusted to achieve different widths according to production needs.

4.Edge Trimming and Scrap Removal:

Trimming mechanisms may be employed to remove irregular edges or side scrap generated during the slitting process. Scrap removal systems collect and manage the waste material for disposal or recycling.

5.Recoiling:

Once the material is slit into narrower strips, these strips are rewound or recoiled into separate coils. Each coil may have a specific width and a certain number of strips depending on the requirements.

6.Packaging and Stacking:

After slitting and recoiling, the finished coils or strips are packaged and stacked for storage or further processing.

Slitting lines are used to produce materials of varying widths and thicknesses, catering to different industries and applications. These slit coils or strips are often used as raw materials in the manufacturing of various products such as pipes, tubes, sheets, automotive components, appliances, construction materials, and more.
