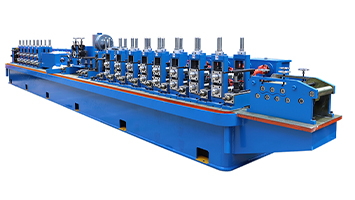

HF 28 High frequency tube mill can produce steel round tubes with diameter 8mm to 50.8mm, square tubes with diameter 10x10mm-40x40mm,rectangle tubes with diameter 10x10mm-20x60mm.

Horizontal type material accumulator is an important equipment in the automatic pipe producing process, it can store the raw material and provide material to the forming machine without stopping the production line.

vertical material accumulator, it's used to store and feed raw materials for forming machine so that the machine can work continuously. It is an important equipment in the automaic pipe producing process.

ERW Tube Mill:There are many materials, and the requirements for different application areas are different.as shown in the table below.

The high frequency tube making machine is a complete set of equipment to produce round steel pipes or various styles of one-line steel pipes through a series of pipe-making processes such as uncoiling, forming, high-frequency welding, welding, sizing, straightening, and cutting.

The finished tubes produced by high frequency tube mahcine are widely used in construction, automobiles, street lamps, furniture, air conditioners, refrigerators, home (clothes hangers, mops), electric vehicles and other vehicles, decorative pipes, threading pipes, oil pipes, shelf pipes and other fields.

High frequency pipe making machine configuration:double side uncoiler 2.steel strip cutter 3.vertical type material accumulator 4.forming and sizing machine 5.pipe cutting saw(cold cutting or friction cutting) 6.pipe unloading platform 7 rolling molds 8.high frequency appliances.

High frequency tube mill is the special equipment to make steel strip form into pipe shape through rolling molds, then heated to melting temperature with the proximity effect and skin effect of high frequency, the two sides of the material weld together under the pressure of extrusion molds and finally become the required pipe size through cooling water, sizing molds and straightening molds.
