TUBE MILLS

ERW High Frequency Carbon Steel and Galvanized Steel Pipe Mill Machine

High Frequency Pipe Mill Machine can produce carbon steel and galvanized steel pipes with diameter 48mm to 127mm, which can make make round pipe , square pipe, rectangle pipe, oval pipe, and other irregular pipe .

Machine Parts

  • Uncoiler

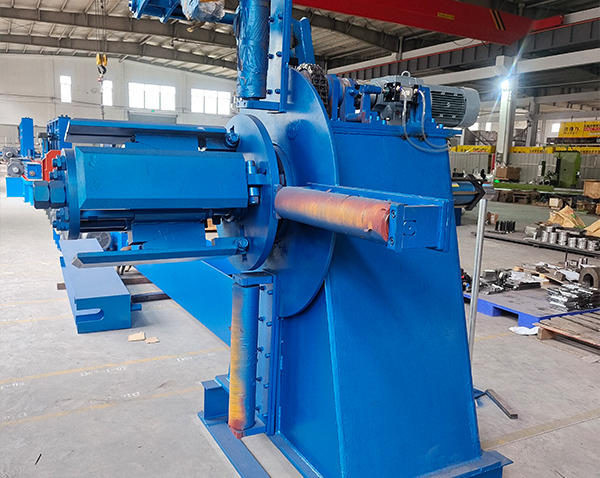

    01Uncoiler

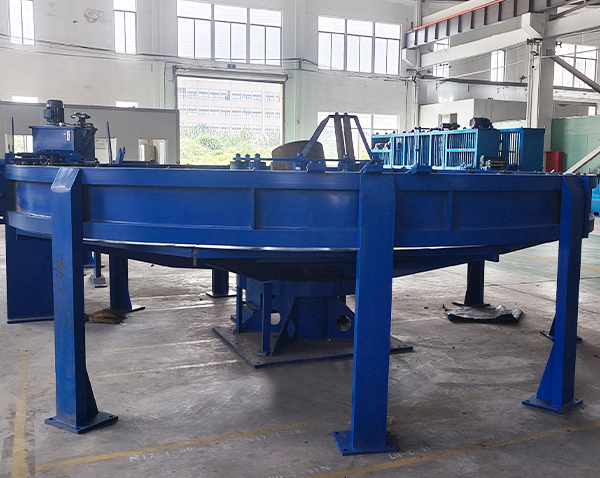

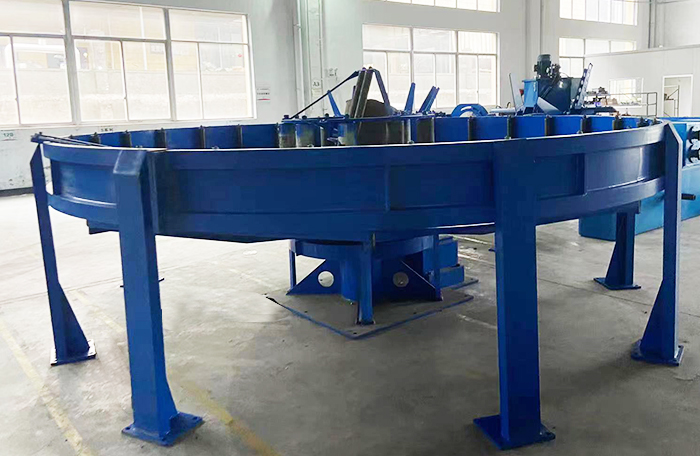

  • Horizontal Type Accumulator

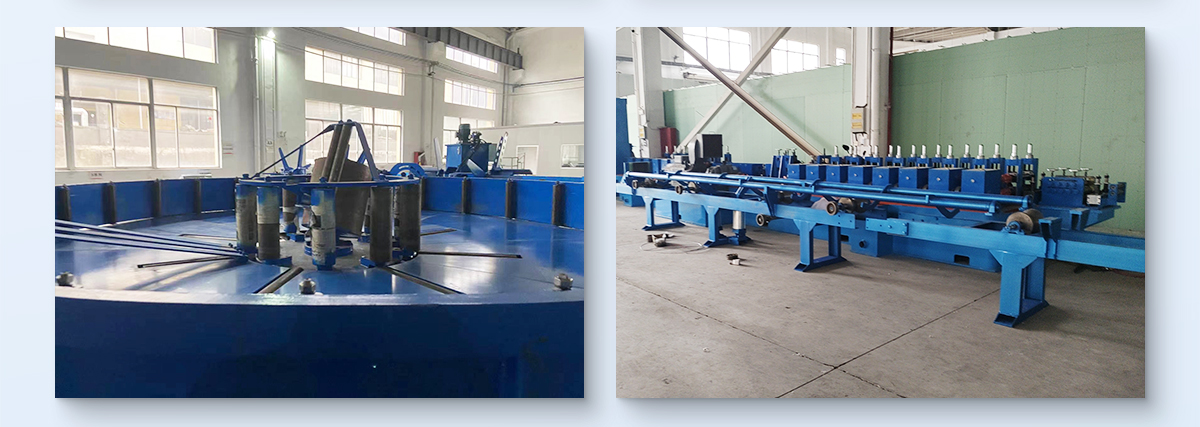

    02Horizontal Type Accumulator

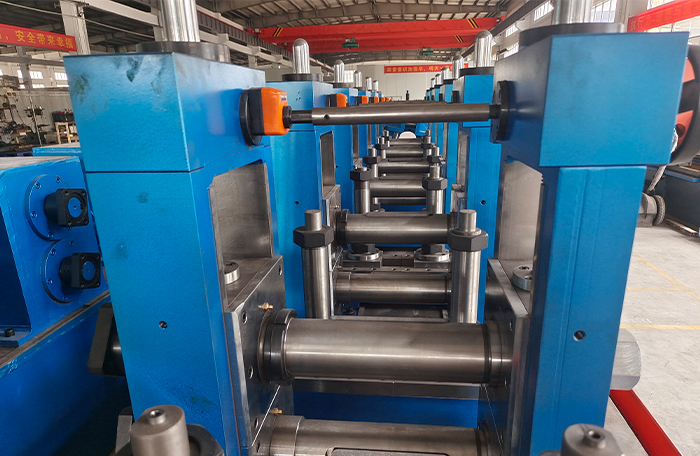

  • Forming Section

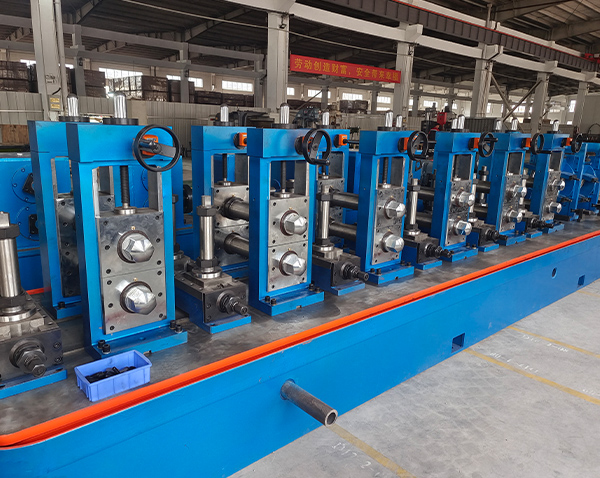

    03Forming Section

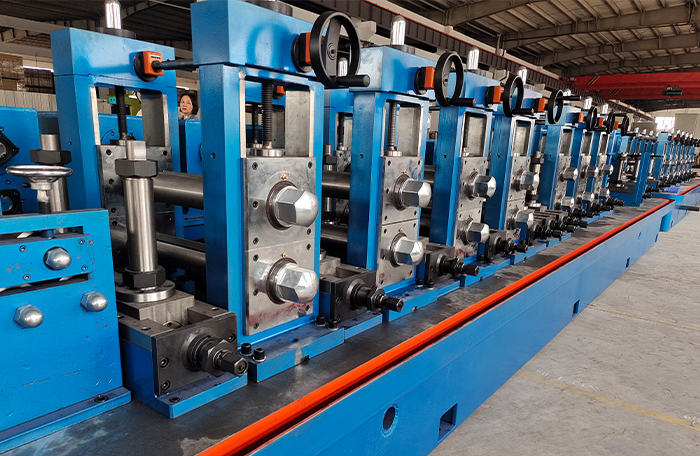

  • Sizing Section

    04Sizing Section

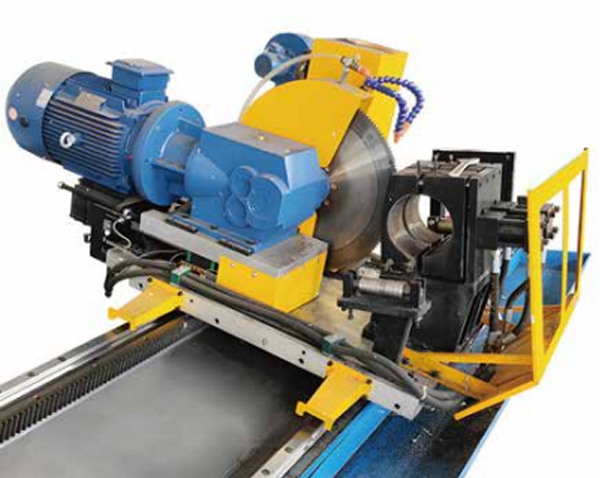

  • Cold Saw Cutting Machine

    05Cold Saw Cutting Machine

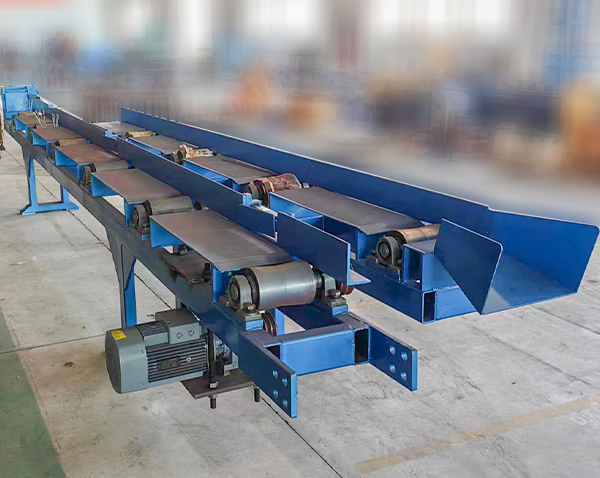

  • Unloading

    06Unloading

Product parameters

High frequency pipe mill machine product parameters
Machine Model HF76K127Round Pipe Diameter 48mm-127mmSquare Pipe Diameter 40mm*40mm-100mm*100mm
Round Pipe Thickness 1.2mm-3.0mmSquare Pipe Thickness 1.2mm-2.5mmProduction Speed 20-90m/min
Machine Configuration 1.double side uncoiler
2.steel strip cutter
3.vertical type material accumulator
4.forming and sizing machine
5.pipe cutting saw(cold cutting or friction cutting)
6.pipe unloading platform
7.rolling molds 8.high frequency appliances

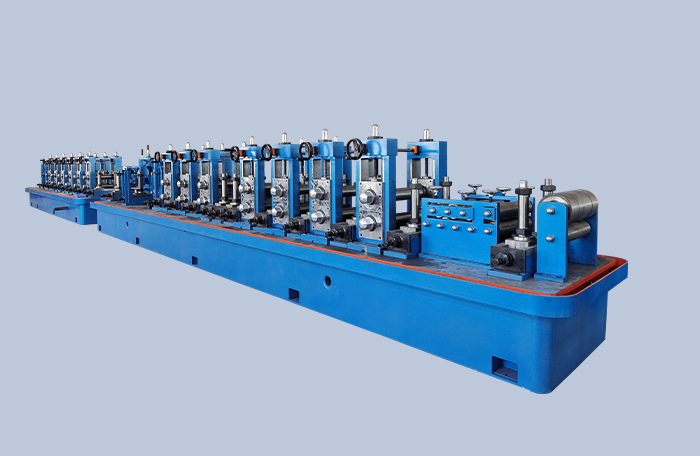

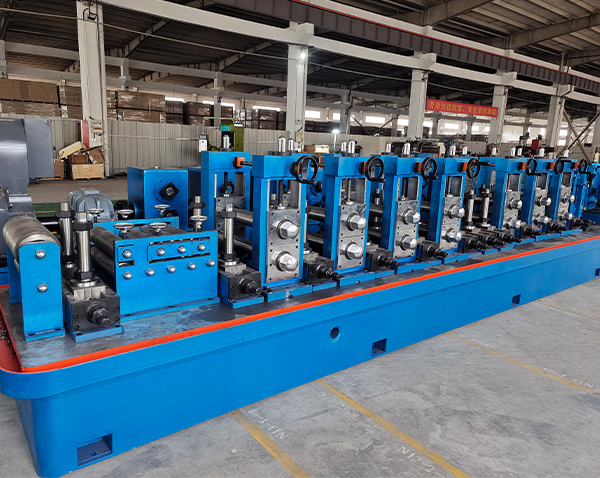

Machine Image

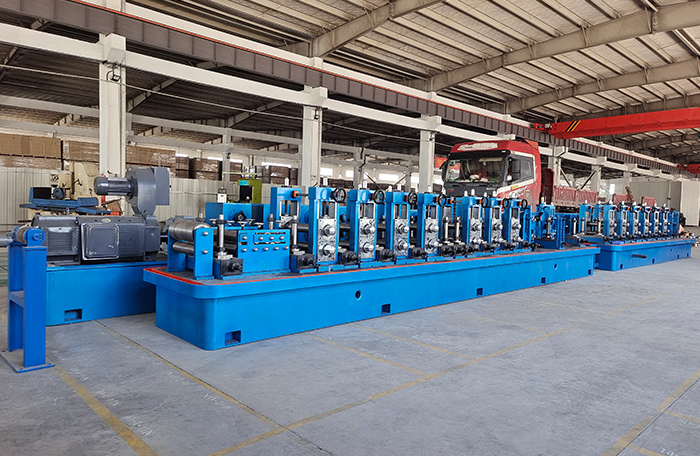

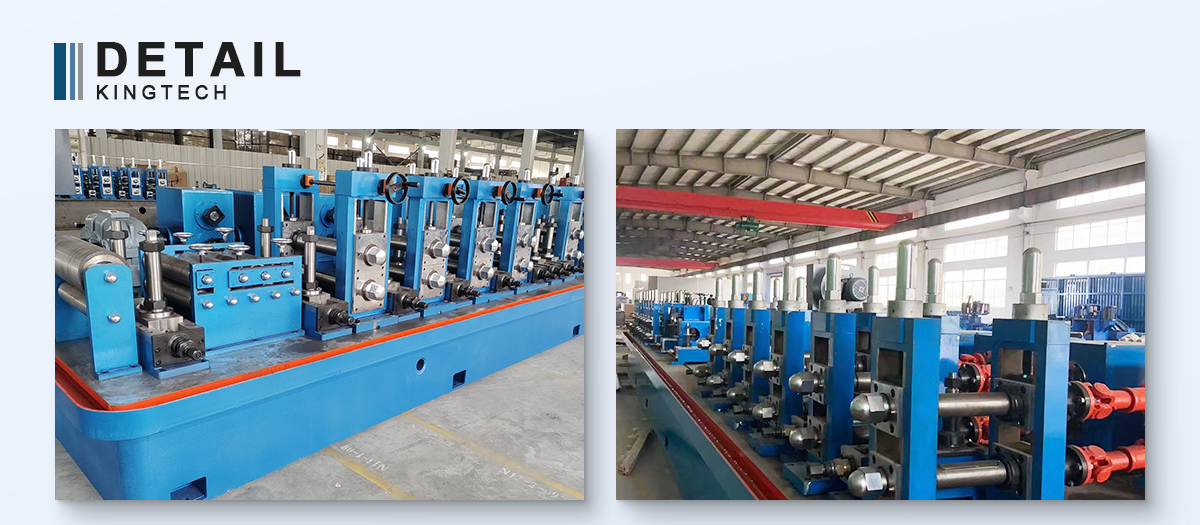

carbon steel pipe millgalvanized steel pipe mill
